    Steel 45 Degree Butt Welded Pipe Fitting / Welding Elbows for industry

    Ask Lasest Price
    Brand Name : HNEENERGY
    Model Number : 45 degree elbow
    Certification : ASME, ANSI, DIN, JIS,ISO etc.
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 3000 Ton per Month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Steel 45 Degree Butt Welded Pipe Fitting / Welding Elbows for industry

    • Steel butt welded pipe fittings -45 degree long radius elbows

    45 ° elbow is the most commonly used elbow in pipeline installation, and it is a fitting that changes the direction of the pipeline in the pipeline system. The curvature radius of all elbows is R ≤ 3D, and the most commonly used are long radius elbows with R=1.5D and short radius elbows with R=1D. The commonly used angles are 90 °, 45 °, and 180 °. Sometimes, there is also a small amount of use of reducing elbows (i.e. connecting to reducing pipes while changing the direction of the pipes). Our company can also customize other non-standard elbows according to engineering needs. Elbows can be classified into three types based on material: stainless steel, carbon steel, and alloy steel.

    45 ° elbow is the most commonly used elbow in pipeline installation, and it is a fitting that changes the direction of the pipeline in the pipeline system. The curvature radius of all elbows is R ≤ 3D, and the most commonly used are long radius elbows with R=1.5D and short radius elbows with R=1D. The commonly used angles are 90 °, 45 °, and 180 °. Sometimes, there is also a small amount of use of reducing elbows (i.e. connecting to reducing pipes while changing the direction of the pipes). Our company can also customize other non-standard elbows according to engineering needs. Elbows can be classified into three types based on material: stainless steel, carbon steel, and alloy steel.

    Butt welded pipe fittings are fittings that are connected to pipes by welding, especially suitable for long pipelines, but not suitable for pipelines that require frequent disassembly. In pipeline systems, welded pipe fittings are pressure pipeline components used to change the direction or diameter of pipelines, branch pipelines, and achieve special connection functions in production equipment such as petrochemical and power plants. It is an important component of pressure pipeline equipment. Due to changes in the flow direction and flow area of the medium at its installation location, its internal and external stress situations are relatively complex. Therefore, the quality level of the pipe fittings directly affects the safe and stable operation of the entire pipeline system. They have multiple product types to choose from, such as 90 degree elbows, 45 degree elbows, tees, crosses, pipe caps, concentric reducers, eccentric reducers, and flanged short joints.

    Butt welded pipe fittings are a type of high-quality pipe fittings manufactured from welded pipes, which are widely used in the construction industry. They mainly include butt welded pipe fittings made of stainless steel, carbon steel, low alloy steel, and alloy steel. Compared with ordinary welded pipe fittings, welded pipe fittings have more durable characteristics and are less prone to deterioration due to external environmental conditions. Welded pipe fittings play an indispensable role in construction engineering and are a widely used type of welded pipe fittings.

    • Buttweld 45° Elbow Specification

    Product Introduction


    Carbon steel Material20#,20G,ASTM A105,ASTM A234 WPB,ASTM A860 WPHY42,ASTM A860 WPHY46,ASTM A860 WPHY52,ASTM A860 WPHY56,ASTM A860 WPHY60,ASTM A860 WPHY65,ASTM A860 WPHY70,ASTM A420 WPL3,ASTM A420 WPL6 etc.
    Stainless steel MaterialASTM A403 WP304,A403 WP304L;A403 WP316,A403 WP316L,A403 WP321 ;A182 F304,304L,316,316L,904L etc.
    Alloy Steel Material

    ASTM A234 WP1,ASTM A234 WP5,ASTM A234 WP9,ASTM A234 WP11,ASTM A234 WP22,ASTM A234 WP91,WP92

    A335 P11/ P91/ P92

    ASTM A182 F5,ASTM A182 F9,ASTM A182 F11,ASTM A182 F22,ASTM A182 F91 etc.

    Manufacturing Standards

    ASME/ANSI B16.9

    MSS-SP-43

    JIS B2311/2220

    DIN2615/2616/2617

    ISO 3419,ISO 5251

    Wall ThicknessSCH5-STD-SCHXXS etc
    Outside Diameter

    1/2''-48''(Butt welding, seamless)

    16''~72''(welding)

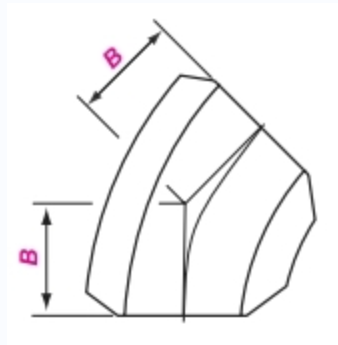

    • 45 ° elbow parameters

    Nominal sizeOutside Diameter at BevelCenter to End
    45° Elbows
    DNNPSODB
    LR3D
    151/221.316-
    203/426.71924
    25133.42231
    3242.22539
    4048.32947
    50260.33563
    6573.04479
    80388.95195
    90101.657111
    1004114.364127
    1255141.379157
    1506168.395189
    2008219.1127252
    25010273.0159316
    30012323.8190378
    35014355.6222441
    40016406.4254505
    45018457.0286568
    50020508.0318632
    55022559.0343694
    60024610.0381757
    65026660.0406821
    70028711.0438883
    75030762.0470964
    80032813.05021010
    85034864.05331073
    90036914.05651135
    95038965.06001200
    1000401016.06321264
    1050421067.06601326
    1100441118.06951389
    1150461168.07271453
    1200481219.07591516

    Notes:

    • Besides ASME, European standard EN, German standard DIN, Japanese standard (JIS), etc.are also applied.
    • The elbow with NPS over 80 shall be customized according to customer specific needs.
