Brand Name : | HNEENERGY |
Model Number : | Inconel 718 pipe fitting |
Certification : | ASME, ANSI, DIN, JIS,ISO etc. |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 50 Ton per Month |
Delivery Time : | 7-30 days |
1. Nickel based alloy Introduction

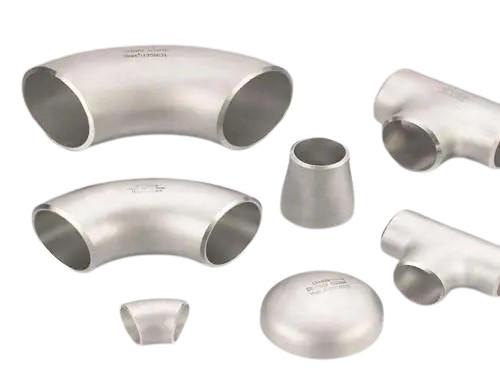

2. Inconel 718 Pipe Fittings
It has good comprehensive performance in the temperature range of -253 to 700 ℃, and its yield strength below 650 ℃ ranks first among deformed high-temperature alloys. It also has good fatigue resistance, radiation resistance, oxidation resistance, corrosion resistance, as well as good processing performance, welding performance, and long-term structural stability. It can manufacture various complex shaped components and has been widely used in aerospace, nuclear energy, and petroleum industries within the above temperature range.
Chemical composition
Category | C | Cr | Ni | Co | Mo | Al | Ti | Fe |
Standard | ≤0.08 | 17.0~21.0 | 50.0~55.0 | 1.0 | 2.80~3.30 | 0.30~0.70 | 0.75~1.15 | Remaining Value |
Category | Nb | Mg | Mn | Si | P | S | Cu | |
Standard | 4.75~5.50 | 0.01 | 0.35 | 0.35 | 0.015 | 0.015 | 0.3 |
Performance:Melting temperature range 1260~1320 ℃, density p=8.24g/cm3
Material Mark : Inconel 718/N07718
Standard : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size : 1/2''~48''(Seamless);16''~110''(Welded)
Wall Thickness: SCH5-STD-SCH XXS
3. Application area
Our company can produce carbon steel, stainless steel, and alloy
steel pipe fittings according to standards such as ASME/ANSI, JIS,
DIN, ISO etc. The varieties include equal diameter tees, reducing
tees, tees, elbows, cross, concentric reducer, eccentric reducer
etc. We provide the very best quality pipe and fittings, prompt
delivery and reliable services at competitive prices.
![]() |
