ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee

Ask Lasest Price
Brand Name :	HNEENERGY
Model Number :	A105 TEE
Certification :	ASME, ANSI, DIN, JIS,ISO etc.
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	3000 Ton per Month

Add to Cart

Product Details
Company Profile

ASTM A105 8 Inch Carbon Steel Pipe Tee Black SCH40 Reducing Tee Straight Tee And Equal Tee

Product Introduction

Material of A105

Composition C: ≤ 0.35 Si: ≤ 0.35 Mn: 0.6-1.05 S: ≤ 0.050 P: ≤ 0.040, Cu ≤ 0.4 Ni ≤ 0.4 Mo ≤ 0.12 V ≤ 0.08 Cr ≤ 0.3
Tensile strength:( σ b) ≥ 485 Mpa
Yield strength( σ s) ≥ 250Mpa
Rear elongation( δ)≥ 22%
Reduction of area( ψ)≥ 30%
Hardness ≤ HB187

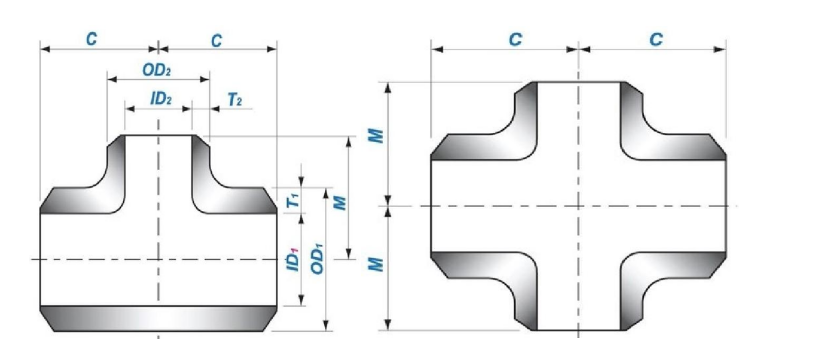

BW Straight Tee /Cross

ASME B16.9

Nominal Size		Outside Diameter at Bevel	Center to End
DN	NPS	OD1×OD2	C	M
15 15×10 15×8	1/2 1/2 ×3/8 1/2×1/4	21.3 21.3×17.1 21.3×13.7	25	25 25 25
20 20×15 20×10	3/4 3/4×1/2 3/4×3/8	26.7 26.7×21.3 26.7×17.1	29	29 29 29
25 25×20 25×15	1 1×3/4 1×1/2	33.4 33.4×26.7 33.4×21.3	38	38 38 38
32 32×25 32×20 32×15	1 1/4 1 1/4×1 1 1/4×3/4 1 1/4×1/2	42.2 42.2×33.4 42.2×26.7 42.2×21.3	48	48 48 48 48
40 40×32 40×25 40×20 40×15	1 1/2 1 1/2×11/4 1 1/2×1 1 1/2 ×3/4 1 1/2 ×1/2	48.3 48.3×42.2 48.3×33.4 48.3×26.7 48.3×21.3	57	57 57 57 57 57
50 50×40 50×32 50×25 50×20	2 2×1 1/2 2×1 1/4 2×1 2×3/4	60.3 60.3×48.3 60.3×42.2 60.3×33.4 60.3×26.7	64	64 60 57 51 44
65 65×50 65×40 65×32 65×25	2 1/2 2 1/2×2 2 1/2×1 1/2 2 1/2×1 1/4 2 1/2×1	73.0 73.0×60.3 73.0×48.3 73.0×42.2 73.0×33.4	76	76 70 67 64 57
80 80×65 80×50 80×40 80×32	3 3×2 1/2 3 ×2 3×1 1/2 3×1 1/4	88.9 88.9×73.0 88.9×60.3 88.9×48.3 88.9×42.2	86	86 83 76 73 70
90 90×80 90×65 90×50 90×40	3 1/2 3 1/2 ×3 3 1/2 ×2 1/2 3 1/2×2 3 1/2×1 1/2	101.6 101.6×88.9 101.6×73.0 101.6×60.3 101.6×48.3	95	95 92 89 83 79
100 100×90 100×80 100×65 100×50 100×40	4 4×3 1/2 4×3 4×2 1/2 4×2 4×1/2	114.3 114.3×101.6 114.3×88.9 114.3×73.0 114.3×60.3 114.3×48.3	105	105 102 98 95 89 86

BW Reducing Tee /Cross

ASME B16.9

Nominal Size		Outside Diameter at Bevel	Center to End
DN	NPS	0D1XOD2	C	M
125 125×100 125×90 125×80 125×65 125×50	5 5×4 5×3 1/2 5×3 5×2 1/2 5×2	141.3 141.3×114.3 141.3×101.6 141.3×88.9 141.3×73.0 141.3×60.3	124	124 117 114 111 108 105
150 150×125 150×100 150×90 150×80 150×65	6 6×5 6×4 6×3 1/2 6×3 6×2 1/2	168.3 168.3×141.3 168.3×114.3 168.3×101.6 168.3×88.9 168.3×73.0	143	143 137 130 127 124 121
200 200×150 200×125 200×100 200×90	8 8×6 8×5 8×4 8×3 1/2	219.1 219.1×168.3 219.1×141.3 219.1×114.3 219.1×101.6	178	178 168 162 156 152
250 250×200 250×150 250×125 250×100	10 10×8 10×6 10×5 10 ×4	273.0 273.0×219.1 273.0×168.3 273.0×141.3 273.0×114.3	216	216 203 194 191 184
300 300×250 300×200 300×150 300×125	12 12×10 12×8 12×6 12×5	323.8 323.8×273.0 323.8×219.1 323.8×168.3 323.8×141.3	254	254 241 229 219 216
350 350×300 350×250 350×200 350×150	14 14×12 14×10 14 ×8 14 ×6	355.6 355.6×323.8 355.6×273.0 355.6×219.1 355.6×168.3	279	279 270 257 248 238
400 400×350 400×300 400×250 400×200 400×150	16 16×14 16×12 16×10 16×8 16×6	406.4 406.4×355.6 406.4×323.8 406.4×273.0 406.4 ×219.1 406.4×168.3	305	305 305 295 283 273 264

Details

Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc.We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.

Product Tags:

SCH40 carbon steel pipe tee

8 Inch Carbon Steel Pipe Tee

Straight carbon steel pipe tee
